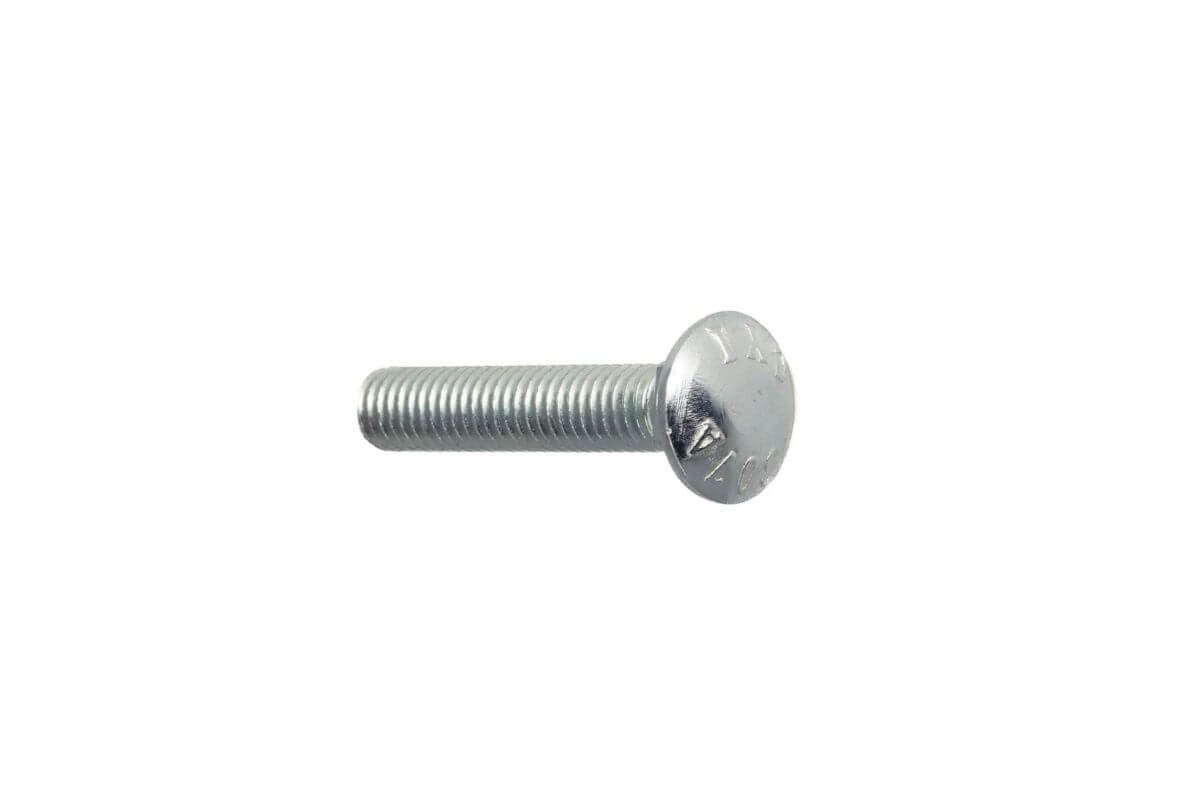

How To Install Carriage Bolts

Learning how to install carriage bolts starts with gathering your tools, hardware, and a resource to walk you through the installation process. Whether you’re a seasoned woodworker or starting out on your first project, we’ve got you covered.

Here’s a step-by-step guide to installing carriage bolts.

1. Gather Your Materials

To install your carriage bolt, you’ll need the following materials:

• Wood: Skip to step three if you are using carriage bolts to fasten metal.
• Carriage Bolt: Either zinc-coated, hot-dipped galvanized, or stainless steel, depending on your needs.
• Hammer: For gently tapping the bolt into place.
• Drill Bit: About the size of the diameter of your carriage bolt.
• Washer: Used to distribute the load placed on the nut.
• Nut: Used to secure the bolt in place.
• Drill: For drilling the initial pilot hole.
• Square File: To shape the round hole into a square one.

2. Make A Square Hole For Your Carriage Bolt

You’ll have to prepare a square hole to accommodate a carriage bolt’s unique square neck. This is most commonly done by drilling a hole and manually digging out the sides of that hole with a square file, until you have a square slot.

Here’s are the steps you’ll need to take to prepare a square hole for your carriage bolt:

1. Mark the Spot: Use a pencil to mark the exact location where the carriage bolt will be inserted into the wood.
2. Select the Right Drill Bit: Choose a drill bit that matches the diameter of your carriage bolt.
3. Drill the Hole: Carefully drill a hole straight through the wood at the marked spot. Ensure the drill remains perpendicular to the surface for a clean cut.
4. Insert the Square File: Use a square file to enlarge and reshape the round hole into a square. This step is critical for creating a snug fit for the square part of the carriage bolt.
5. File Evenly: Work methodically, filing each side evenly to maintain a uniform square shape. Test the fit periodically by inserting the carriage bolt.

3. Insert The Carriage Bolt

Once you have prepared the pilot hole, insert the carriage bolt through the square hole. The bolt head should sit flush against the surface of the wood.

You may need to use a hammer to tap the bolt firmly into place. It’s essential that the bolt’s square neck is fully engaged in the square hole as this will prevent the bolt from spinning after it has been installed.

4. Install The Carriage Bolt Nut & Washer

While the carriage bolt’s square neck means it doesn’t need a washer for its head end, you will need a washer to help distribute the load and protect the wood.

With your carriage bolt secure firmly in place, follow these steps to install the washer and nut onto your carriage bolt:

1. Position the Washer: Place a washer onto the protruding end of the carriage bolt. The washer helps distribute the load and protects the wood or metal surface.
2. Thread the Nut: Thread a nut onto the bolt, turning it clockwise by hand until it is snug.
3. Tighten the Nut: Use a wrench to tighten the nut securely. Ensure it is tight enough to hold the materials together but not so tight that you damage the wood or strip the threads.

The Bottom Line On How To Use Carriage Bolts

Once you’ve learned how to use carriage bolts, a whole new world of DIY and woodworking projects become open to you. We hope that you’ll continue to use this guide as a resource as you take on more projects.

For the best results, always choose high-quality carriage bolts suited to your specific needs. Our expert team is here to offer guidance to help you select the best carriage bolt for your project.

Contact us for personalized support and assistance.
